글로벌 컨텍스트 비전 트랜스포머 이미지 분류

글로벌 컨텍스트 비전 트랜스포머를 이용한 이미지 분류

원본 링크 : https://keras.io/examples/vision/image_classification_using_global_context_vision_transformer/
최종 확인 : 2024-11-20

저자 : Md Awsafur Rahman
생성일 : 2023/10/30
최종 편집일 : 2023/10/30
설명 : 이미지 분류를 위한 글로벌 컨텍스트 비전 트랜스포머의 구현 및 미세 조정.

ⓘ 이 예제는 Keras 3를 사용합니다.

Colab

GitHub

셋업

!pip install --upgrade keras_cv tensorflow
!pip install --upgrade keras

import keras
from keras_cv.layers import DropPath
from keras import ops
from keras import layers

import tensorflow as tf  # dataloader를 위해서만 사용
import tensorflow_datasets as tfds  # flower 데이터 세트를 위해 사용

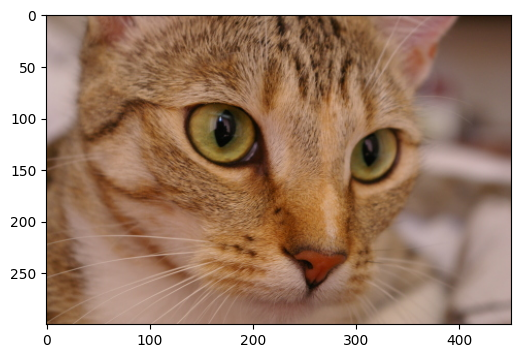

from skimage.data import chelsea
import matplotlib.pyplot as plt
import numpy as np

소개

In this notebook, we will utilize multi-backend Keras 3.0 to implement the GCViT: Global Context Vision Transformer paper, presented at ICML 2023 by A Hatamizadeh et al. The, we will fine-tune the model on the Flower dataset for image classification task, leveraging the official ImageNet pre-trained weights. A highlight of this notebook is its compatibility with multiple backends: TensorFlow, PyTorch, and JAX, showcasing the true potential of multi-backend Keras.

Motivation

Note: In this section we’ll learn about the backstory of GCViT and try to understand why it is proposed.

During recent years, Transformers have achieved dominance in Natural Language Processing (NLP) tasks and with the self-attention mechanism which allows for capturing both long and short-range information.
Following this trend, Vision Transformer (ViT) proposed to utilize image patches as tokens in a gigantic architecture similar to encoder of the original Transformer.
Despite the historic dominance of Convolutional Neural Network (CNN) in computer vision, ViT-based models have shown SOTA or competitive performance in various computer vision tasks.

gif

However, quadratic [O(n^2)] computational complexity of self-attention and lack of multi-scale information makes it difficult for ViT to be considered as general-purpose architecture for Compute Vision tasks like segmentation and object detection where it requires dense prediction at the pixel level.

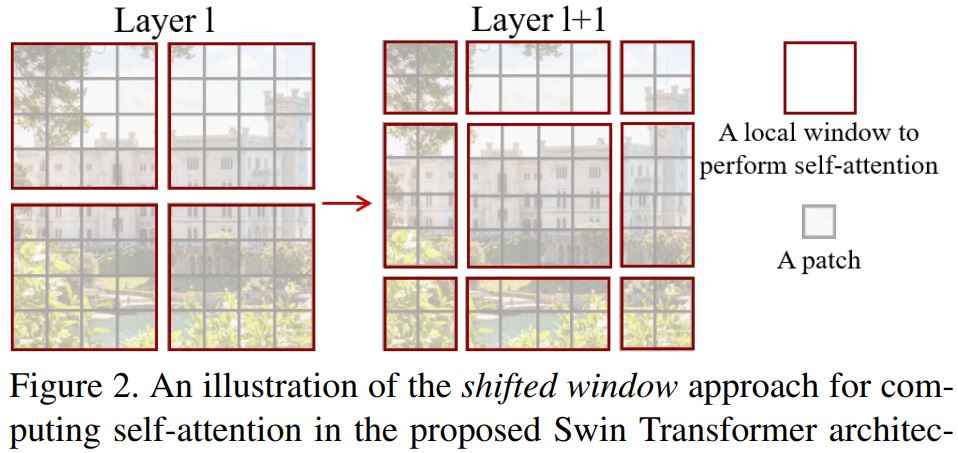

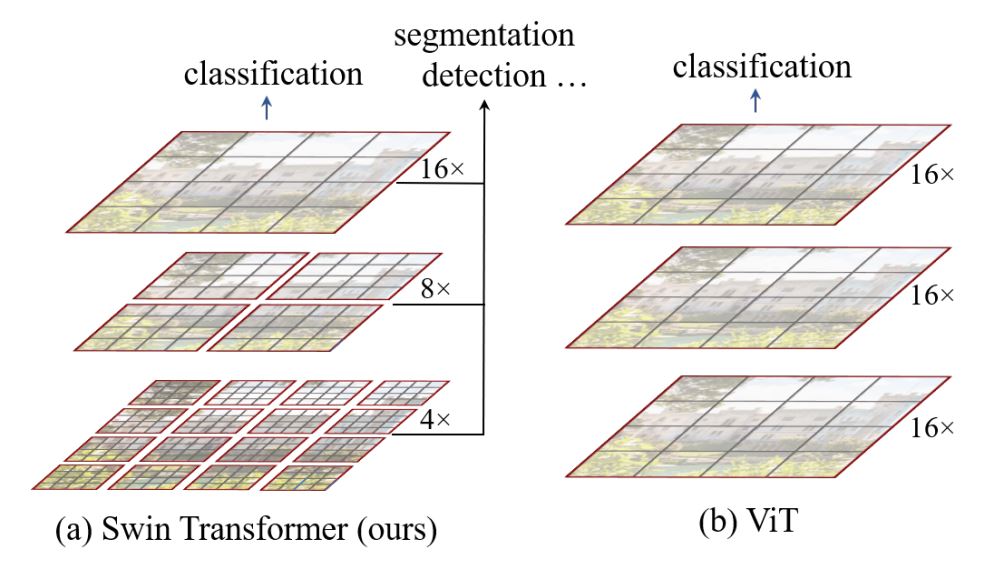

Swin Transformer has attempted to address the issues of ViT by proposing multi-resolution/hierarchical architectures in which the self-attention is computed in local windows and cross-window connections such as window shifting are used for modeling the interactions across different regions. But the limited receptive field of local windows can not capture long-range information, and cross-window-connection schemes such as window-shifting only cover a small neighborhood in the vicinity of each window. Also, it lacks inductive-bias that encourages certain translation invariance is still preferable for general-purpose visual modeling, particularly for the dense prediction tasks of object detection and semantic segmentation.

jpeg jpeg jpeg

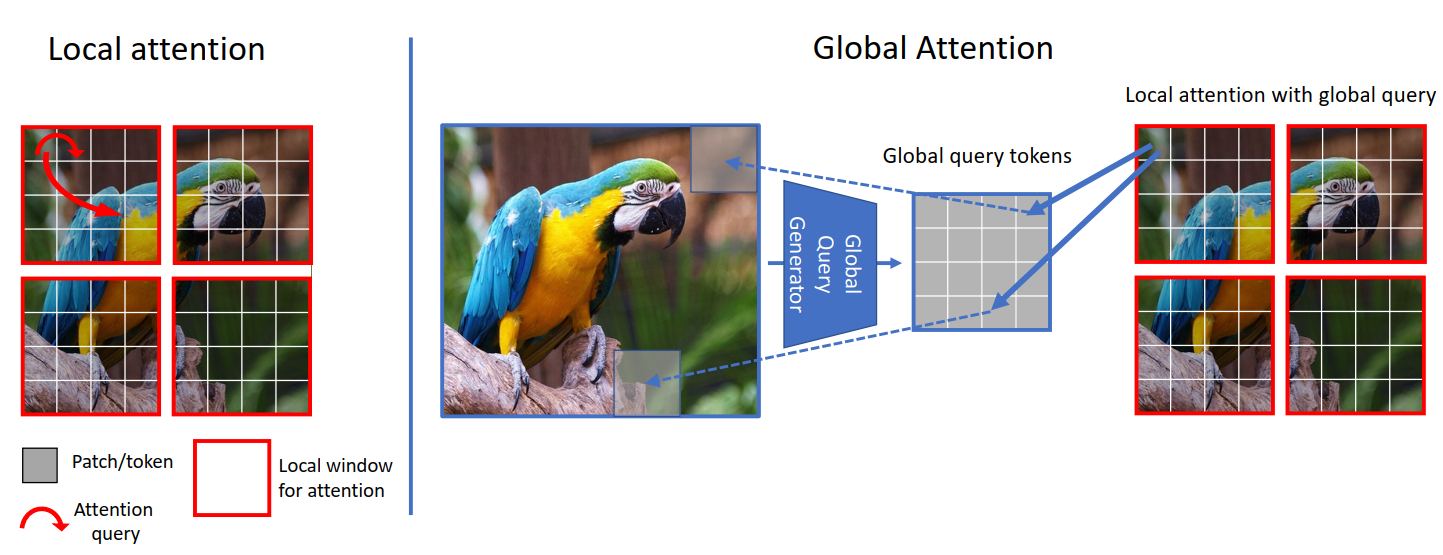

To address above limitations, Global Context (GC) ViT network is proposed.

Architecture

Let’s have a quick overview of our key components,

Stem/PatchEmbed: A stem/patchify layer processes images at the network’s beginning. For this network, it creates patches/tokens and converts them into embeddings.
Level: It is the repetitive building block that extracts features using different blocks.
Global Token Gen./FeatureExtraction: It generates global tokens/patches with Depthwise-CNN, SqueezeAndExcitation (Squeeze-Excitation), CNN and MaxPooling. So basically it’s a Feature Extractor.
Block: It is the repetitive module that applies attention to the features and projects them to a certain dimension.
1. Local-MSA: Local Multi head Self Attention.
2. Global-MSA: Global Multi head Self Attention.
3. MLP: Linear layer that projects a vector to another dimension.
Downsample/ReduceSize: It is very similar to Global Token Gen. module except it uses CNN instead of MaxPooling to downsample with additional Layer Normalization modules.
Head: It is the module responsible for the classification task.
1. Pooling: It converts N x 2D features to N x 1D features.
2. Classifier: It processes N x 1D features to make a decision about class.

I’ve annotated the architecture figure to make it easier to digest,

png

Unit Blocks

Note: This blocks are used to build other modules throughout the paper. Most of the blocks are either borrowed from other work or modified version old work.

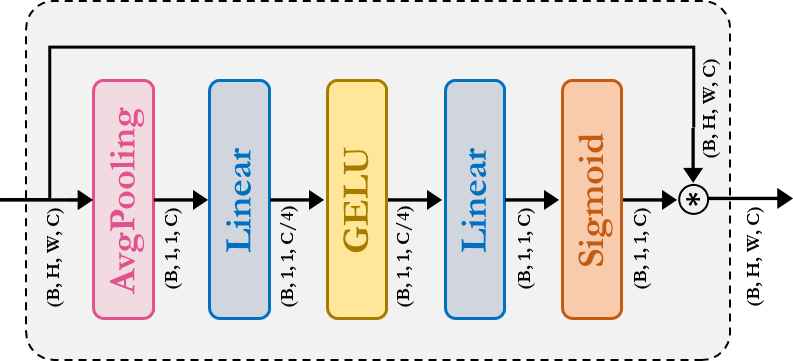

SqueezeAndExcitation: Squeeze-Excitation (SE) aka Bottleneck module acts sd kind of channel attention. It consits of AvgPooling, Dense/FullyConnected (FC)/Linear , GELU and Sigmoid module.

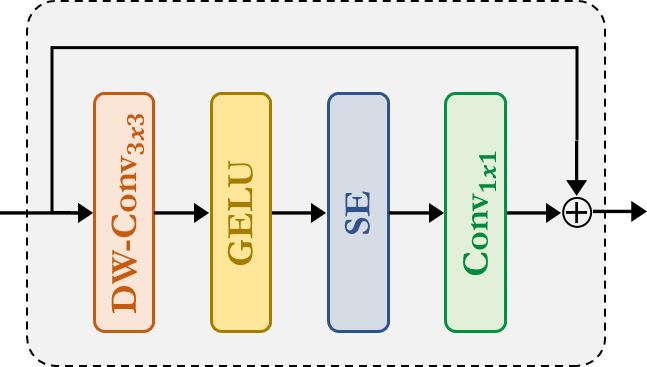

Fused-MBConv: This is similar to the one used in EfficientNetV2. It uses Depthwise-Conv, GELU, SqueezeAndExcitation, Conv, to extract feature with a resiudal connection. Note that, no new module is declared for this one, we simply applied corresponding modules directly.

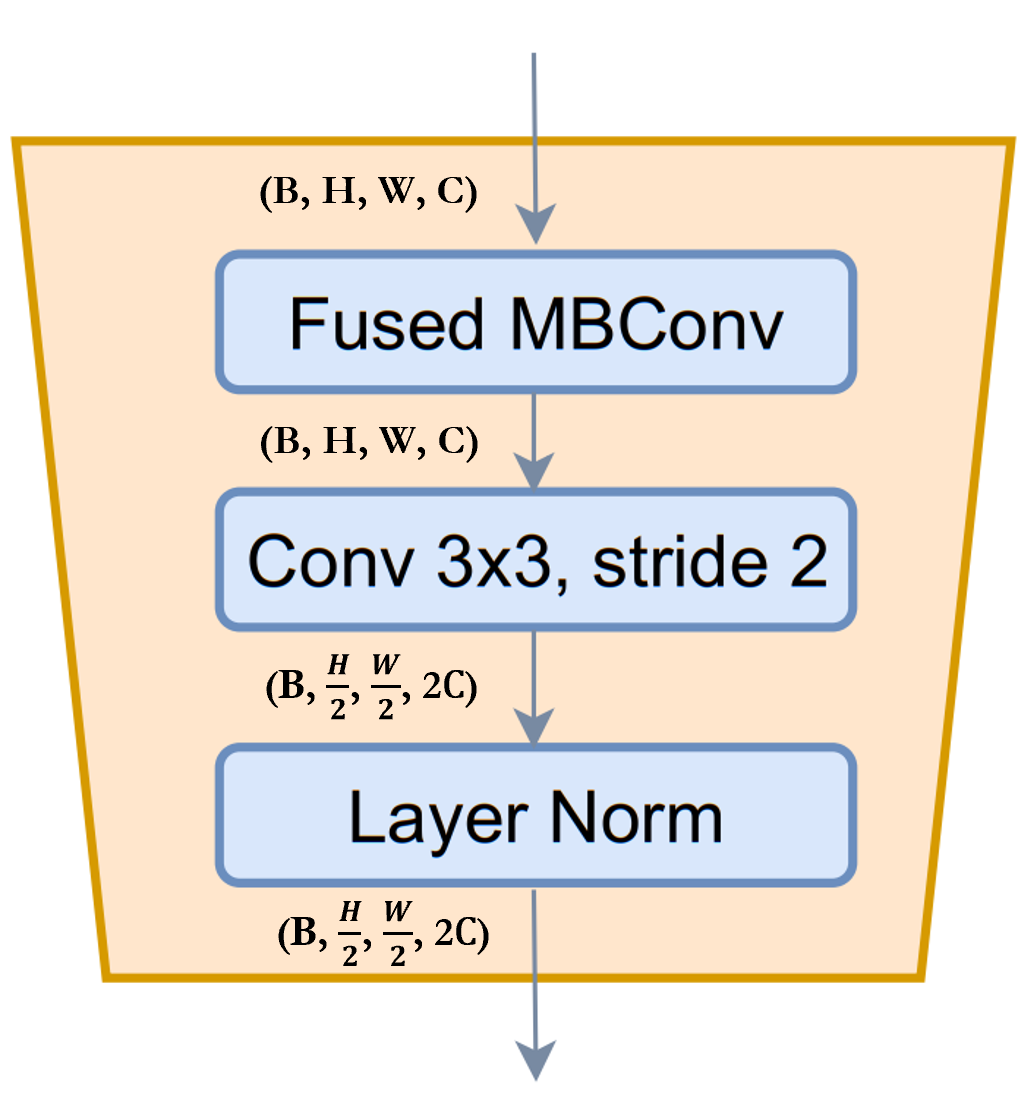

ReduceSize: It is a CNN based downsample module which abvobe mentioned Fused-MBConv module to extract feature, Strided Conv to simultaneously reduce spatial dimension and increse channelwise dimention of the features and finally LayerNormalization module to normalize features. In the paper/figure this module is referred as downsample module. I think it is mention worthy that SwniTransformer used PatchMerging module instead of ReduceSize to reduce the spatial dimention and increase channelwise dimension which uses fully-connected/dense/linear module. According to the GCViT paper, one of the purposes of using ReduceSize is to add inductive bias through CNN module.
MLP: This is our very own Multi Layer Perceptron module. This a feed-forward/fully-connected/linear module which simply projects input to an arbitary dimension.

class SqueezeAndExcitation(layers.Layer):
    """Squeeze and excitation block.

    Args:
        output_dim: output features dimension, if `None` use same dim as input.
        expansion: expansion ratio.
    """

    def __init__(self, output_dim=None, expansion=0.25, **kwargs):
        super().__init__(**kwargs)
        self.expansion = expansion
        self.output_dim = output_dim

    def build(self, input_shape):
        inp = input_shape[-1]
        self.output_dim = self.output_dim or inp
        self.avg_pool = layers.GlobalAvgPool2D(keepdims=True, name="avg_pool")
        self.fc = [
            layers.Dense(int(inp * self.expansion), use_bias=False, name="fc_0"),
            layers.Activation("gelu", name="fc_1"),
            layers.Dense(self.output_dim, use_bias=False, name="fc_2"),
            layers.Activation("sigmoid", name="fc_3"),
        ]
        super().build(input_shape)

    def call(self, inputs, **kwargs):
        x = self.avg_pool(inputs)
        for layer in self.fc:
            x = layer(x)
        return x * inputs


class ReduceSize(layers.Layer):
    """Down-sampling block.

    Args:
        keepdims: if False spatial dim is reduced and channel dim is increased
    """

    def __init__(self, keepdims=False, **kwargs):
        super().__init__(**kwargs)
        self.keepdims = keepdims

    def build(self, input_shape):
        embed_dim = input_shape[-1]
        dim_out = embed_dim if self.keepdims else 2 * embed_dim
        self.pad1 = layers.ZeroPadding2D(1, name="pad1")
        self.pad2 = layers.ZeroPadding2D(1, name="pad2")
        self.conv = [
            layers.DepthwiseConv2D(
                kernel_size=3, strides=1, padding="valid", use_bias=False, name="conv_0"
            ),
            layers.Activation("gelu", name="conv_1"),
            SqueezeAndExcitation(name="conv_2"),
            layers.Conv2D(
                embed_dim,
                kernel_size=1,
                strides=1,
                padding="valid",
                use_bias=False,
                name="conv_3",
            ),
        ]
        self.reduction = layers.Conv2D(
            dim_out,
            kernel_size=3,
            strides=2,
            padding="valid",
            use_bias=False,
            name="reduction",
        )
        self.norm1 = layers.LayerNormalization(
            -1, 1e-05, name="norm1"
        )  # eps like PyTorch
        self.norm2 = layers.LayerNormalization(-1, 1e-05, name="norm2")

    def call(self, inputs, **kwargs):
        x = self.norm1(inputs)
        xr = self.pad1(x)
        for layer in self.conv:
            xr = layer(xr)
        x = x + xr
        x = self.pad2(x)
        x = self.reduction(x)
        x = self.norm2(x)
        return x


class MLP(layers.Layer):
    """Multi-Layer Perceptron (MLP) block.

    Args:
        hidden_features: hidden features dimension.
        out_features: output features dimension.
        activation: activation function.
        dropout: dropout rate.
    """

    def __init__(
        self,
        hidden_features=None,
        out_features=None,
        activation="gelu",
        dropout=0.0,
        **kwargs,
    ):
        super().__init__(**kwargs)
        self.hidden_features = hidden_features
        self.out_features = out_features
        self.activation = activation
        self.dropout = dropout

    def build(self, input_shape):
        self.in_features = input_shape[-1]
        self.hidden_features = self.hidden_features or self.in_features
        self.out_features = self.out_features or self.in_features
        self.fc1 = layers.Dense(self.hidden_features, name="fc1")
        self.act = layers.Activation(self.activation, name="act")
        self.fc2 = layers.Dense(self.out_features, name="fc2")
        self.drop1 = layers.Dropout(self.dropout, name="drop1")
        self.drop2 = layers.Dropout(self.dropout, name="drop2")

    def call(self, inputs, **kwargs):
        x = self.fc1(inputs)
        x = self.act(x)
        x = self.drop1(x)
        x = self.fc2(x)
        x = self.drop2(x)
        return x

Stem

Notes: In the code, this module is referred to as PatchEmbed but on paper, it is referred to as Stem.

In the model, we have first used patch_embed module. Let’s try to understand this module. As we can see from the call method,

This module first pads input
Then uses convolutions to extract patches with embeddings.
Finally, uses ReduceSize module to first extract features with convolution but neither reduces spatial dimension nor increases spatial dimension.
One important point to notice, unlike ViT or SwinTransformer, GCViT creates overlapping patches. We can notice that from the code, Conv2D(self.embed_dim, kernel_size=3, strides=2, name='proj'). If we wanted non-overlapping patches then we would’ve used the same kernel_size and stride.
This module reduces the spatial dimension of input by 4x.

Summary: image → padding → convolution → (feature_extract + downsample)

class PatchEmbed(layers.Layer):
    """Patch embedding block.

    Args:
        embed_dim: feature size dimension.
    """

    def __init__(self, embed_dim, **kwargs):
        super().__init__(**kwargs)
        self.embed_dim = embed_dim

    def build(self, input_shape):
        self.pad = layers.ZeroPadding2D(1, name="pad")
        self.proj = layers.Conv2D(self.embed_dim, 3, 2, name="proj")
        self.conv_down = ReduceSize(keepdims=True, name="conv_down")

    def call(self, inputs, **kwargs):
        x = self.pad(inputs)
        x = self.proj(x)
        x = self.conv_down(x)
        return x

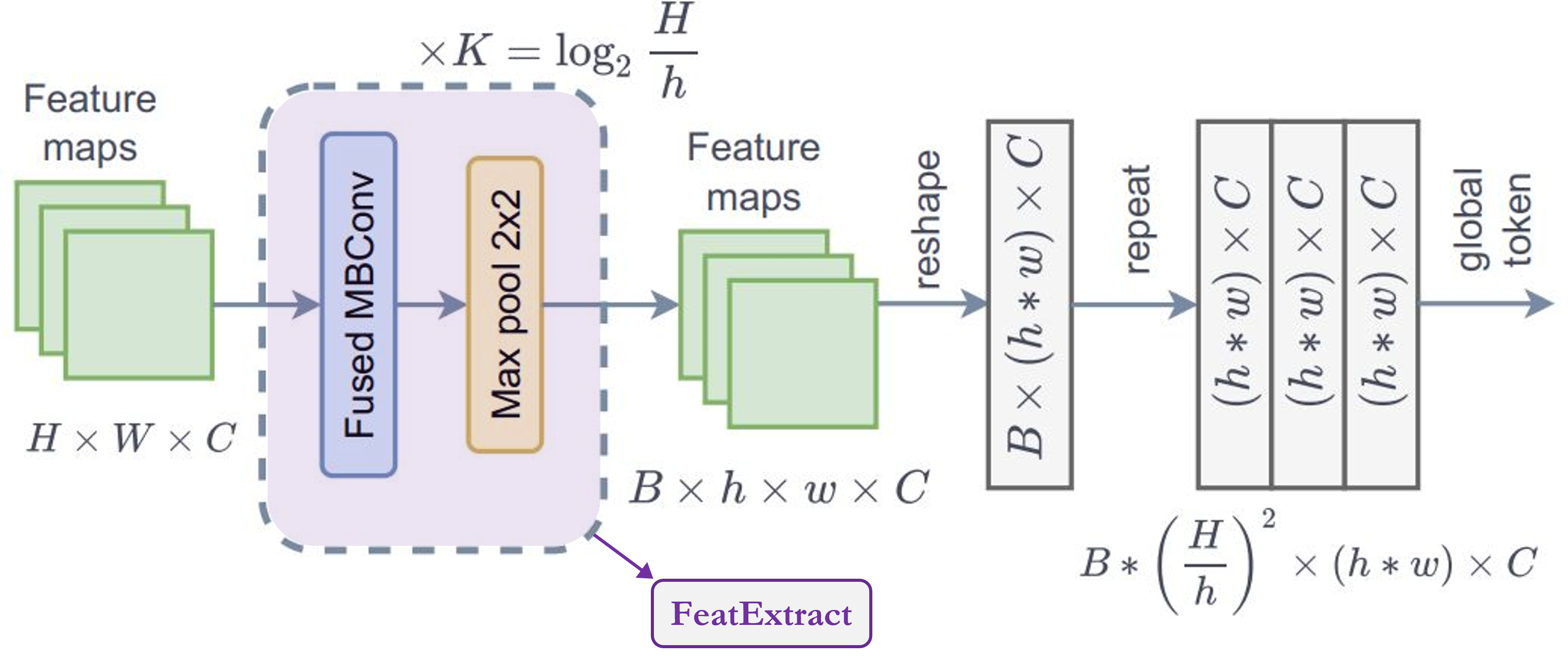

Global Token Gen.

Notes: It is one of the two CNN modules that is used to imppose inductive bias.

As we can see from above cell, in the level we have first used to_q_global/Global Token Gen./FeatureExtraction. Let’s try to understand how it works,

This module is series of FeatureExtract module, according to paper we need to repeat this module K times, where K = log2(H/h), H = feature_map_height, W = feature_map_width.
FeatureExtraction: This layer is very similar to ReduceSize module except it uses MaxPooling module to reduce the dimension, it doesn’t increse feature dimension (channelsie) and it doesn’t uses LayerNormalizaton. This module is used to in Generate Token Gen. module repeatedly to generte global tokens for global-context-attention.
One important point to notice from the figure is that, global tokens is shared across the whole image which means we use only one global window for all local tokens in a image. This makes the computation very efficient.
For input feature map with shape (B, H, W, C), we’ll get output shape (B, h, w, C). If we copy these global tokens for total M local windows in an image where, M = (H x W)/(h x w) = num_window, then output shape: (B * M, h, w, C)."

Summary: This module is used to resize the image to fit window.

png

class FeatureExtraction(layers.Layer):
    """Feature extraction block.

    Args:
        keepdims: bool argument for maintaining the resolution.
    """

    def __init__(self, keepdims=False, **kwargs):
        super().__init__(**kwargs)
        self.keepdims = keepdims

    def build(self, input_shape):
        embed_dim = input_shape[-1]
        self.pad1 = layers.ZeroPadding2D(1, name="pad1")
        self.pad2 = layers.ZeroPadding2D(1, name="pad2")
        self.conv = [
            layers.DepthwiseConv2D(3, 1, use_bias=False, name="conv_0"),
            layers.Activation("gelu", name="conv_1"),
            SqueezeAndExcitation(name="conv_2"),
            layers.Conv2D(embed_dim, 1, 1, use_bias=False, name="conv_3"),
        ]
        if not self.keepdims:
            self.pool = layers.MaxPool2D(3, 2, name="pool")
        super().build(input_shape)

    def call(self, inputs, **kwargs):
        x = inputs
        xr = self.pad1(x)
        for layer in self.conv:
            xr = layer(xr)
        x = x + xr
        if not self.keepdims:
            x = self.pool(self.pad2(x))
        return x


class GlobalQueryGenerator(layers.Layer):
    """Global query generator.

    Args:
        keepdims: to keep the dimension of FeatureExtraction layer.
        For instance, repeating log(56/7) = 3 blocks, with input
        window dimension 56 and output window dimension 7 at down-sampling
        ratio 2. Please check Fig.5 of GC ViT paper for details.
    """

    def __init__(self, keepdims=False, **kwargs):
        super().__init__(**kwargs)
        self.keepdims = keepdims

    def build(self, input_shape):
        self.to_q_global = [
            FeatureExtraction(keepdims, name=f"to_q_global_{i}")
            for i, keepdims in enumerate(self.keepdims)
        ]
        super().build(input_shape)

    def call(self, inputs, **kwargs):
        x = inputs
        for layer in self.to_q_global:
            x = layer(x)
        return x

Attention

Notes: This is the core contribution of the paper.

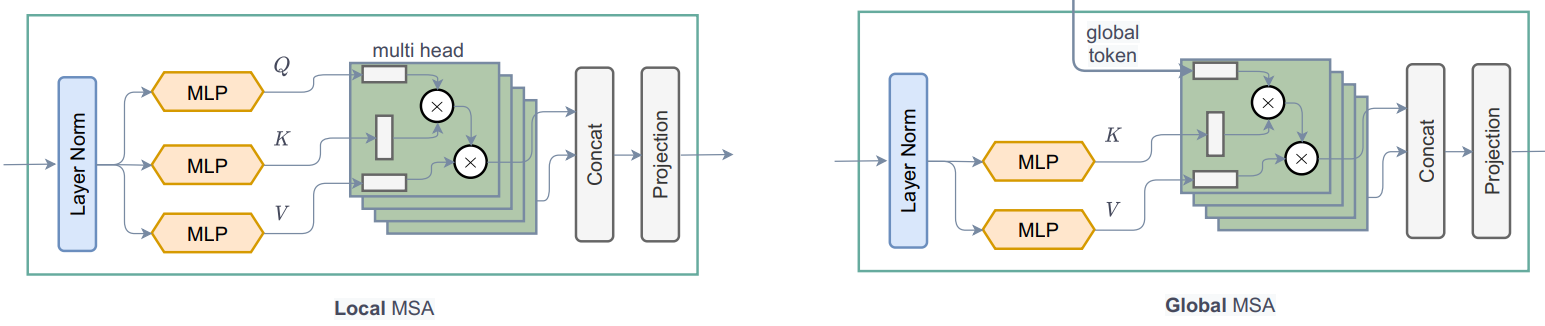

As we can see from the call method, 1. WindowAttention module applies both local and global window attention depending on global_query parameter.

First it converts input features into query, key, value for local attention and key, value for global attention. For global attention, it takes global query from Global Token Gen.. One thing to notice from the code is that we divide the features or embed_dim among all the heads of Transformer to reduce the computation. qkv = tf.reshape(qkv, [B_, N, self.qkv_size, self.num_heads, C // self.num_heads])
Before sending query, key and value for attention, global token goes through an important process. Same global tokens or one global window gets copied for all the local windows to increase efficiency. q_global = tf.repeat(q_global, repeats=B_//B, axis=0), here B_//B means num_windows in a image.
Then simply applies local-window-self-attention or global-window-attention depending on global_query parameter. One thing to notice from the code is that we are adding relative-positional-embedding with the attention mask instead of the patch embedding. attn = attn + relative_position_bias[tf.newaxis,]
Now, let’s think for a bit and try to understand what is happening here. Let’s focus on the figure below. We can see from the left, that in the local-attention the query is local and it’s limited to the local window (red square border) hence we don’t have access to long-range information. But on the right that due to global query we’re now not limited to local-windows (blue square border) and we have access to long-range information.
In ViT we compare (attention) image-tokens with image-tokens, in SwinTransformer we compare window-tokens with window-tokens but in GCViT we compare image-tokens with window-tokens. But now you may ask, how can compare(attention) image-tokens with window-tokens even after image-tokens have larger dimensions than window-tokens? (from above figure image-tokens have shape (1, 8, 8, 3) and window-tokens have shape (1, 4, 4, 3)). Yes, you are right we can’t directly compare them hence we resize image-tokens to fit window-tokens with Global Token Gen./FeatureExtraction CNN module. The following table should give you a clear comparison,
Model Query Tokens Key-Value Tokens Attention Type Attention Coverage
ViT image image self-attention global
SwinTransformer window window self-attention local
GCViT resized-image window image-window attention global

Model	Query Tokens	Key-Value Tokens	Attention Type	Attention Coverage
ViT	image	image	self-attention	global
SwinTransformer	window	window	self-attention	local
GCViT	resized-image	window	image-window attention	global

class WindowAttention(layers.Layer):
    """Local window attention.

    This implementation was proposed by
    [Liu et al., 2021](https://arxiv.org/abs/2103.14030) in SwinTransformer.

    Args:
        window_size: window size.
        num_heads: number of attention head.
        global_query: if the input contains global_query
        qkv_bias: bool argument for query, key, value learnable bias.
        qk_scale: bool argument to scaling query, key.
        attention_dropout: attention dropout rate.
        projection_dropout: output dropout rate.
    """

    def __init__(
        self,
        window_size,
        num_heads,
        global_query,
        qkv_bias=True,
        qk_scale=None,
        attention_dropout=0.0,
        projection_dropout=0.0,
        **kwargs,
    ):
        super().__init__(**kwargs)
        window_size = (window_size, window_size)
        self.window_size = window_size
        self.num_heads = num_heads
        self.global_query = global_query
        self.qkv_bias = qkv_bias
        self.qk_scale = qk_scale
        self.attention_dropout = attention_dropout
        self.projection_dropout = projection_dropout

    def build(self, input_shape):
        embed_dim = input_shape[0][-1]
        head_dim = embed_dim // self.num_heads
        self.scale = self.qk_scale or head_dim**-0.5
        self.qkv_size = 3 - int(self.global_query)
        self.qkv = layers.Dense(
            embed_dim * self.qkv_size, use_bias=self.qkv_bias, name="qkv"
        )
        self.relative_position_bias_table = self.add_weight(
            name="relative_position_bias_table",
            shape=[
                (2 * self.window_size[0] - 1) * (2 * self.window_size[1] - 1),
                self.num_heads,
            ],
            initializer=keras.initializers.TruncatedNormal(stddev=0.02),
            trainable=True,
            dtype=self.dtype,
        )
        self.attn_drop = layers.Dropout(self.attention_dropout, name="attn_drop")
        self.proj = layers.Dense(embed_dim, name="proj")
        self.proj_drop = layers.Dropout(self.projection_dropout, name="proj_drop")
        self.softmax = layers.Activation("softmax", name="softmax")
        super().build(input_shape)

    def get_relative_position_index(self):
        coords_h = ops.arange(self.window_size[0])
        coords_w = ops.arange(self.window_size[1])
        coords = ops.stack(ops.meshgrid(coords_h, coords_w, indexing="ij"), axis=0)
        coords_flatten = ops.reshape(coords, [2, -1])
        relative_coords = coords_flatten[:, :, None] - coords_flatten[:, None, :]
        relative_coords = ops.transpose(relative_coords, axes=[1, 2, 0])
        relative_coords_xx = relative_coords[:, :, 0] + self.window_size[0] - 1
        relative_coords_yy = relative_coords[:, :, 1] + self.window_size[1] - 1
        relative_coords_xx = relative_coords_xx * (2 * self.window_size[1] - 1)
        relative_position_index = relative_coords_xx + relative_coords_yy
        return relative_position_index

    def call(self, inputs, **kwargs):
        if self.global_query:
            inputs, q_global = inputs
            B = ops.shape(q_global)[0]  # B, N, C
        else:
            inputs = inputs[0]
        B_, N, C = ops.shape(inputs)  # B*num_window, num_tokens, channels
        qkv = self.qkv(inputs)
        qkv = ops.reshape(
            qkv, [B_, N, self.qkv_size, self.num_heads, C // self.num_heads]
        )
        qkv = ops.transpose(qkv, [2, 0, 3, 1, 4])
        if self.global_query:
            k, v = ops.split(
                qkv, indices_or_sections=2, axis=0
            )  # for unknown shame num=None will throw error
            q_global = ops.repeat(
                q_global, repeats=B_ // B, axis=0
            )  # num_windows = B_//B => q_global same for all windows in a img
            q = ops.reshape(q_global, [B_, N, self.num_heads, C // self.num_heads])
            q = ops.transpose(q, axes=[0, 2, 1, 3])
        else:
            q, k, v = ops.split(qkv, indices_or_sections=3, axis=0)
            q = ops.squeeze(q, axis=0)

        k = ops.squeeze(k, axis=0)
        v = ops.squeeze(v, axis=0)

        q = q * self.scale
        attn = q @ ops.transpose(k, axes=[0, 1, 3, 2])
        relative_position_bias = ops.take(
            self.relative_position_bias_table,
            ops.reshape(self.get_relative_position_index(), [-1]),
        )
        relative_position_bias = ops.reshape(
            relative_position_bias,
            [
                self.window_size[0] * self.window_size[1],
                self.window_size[0] * self.window_size[1],
                -1,
            ],
        )
        relative_position_bias = ops.transpose(relative_position_bias, axes=[2, 0, 1])
        attn = attn + relative_position_bias[None,]
        attn = self.softmax(attn)
        attn = self.attn_drop(attn)

        x = ops.transpose((attn @ v), axes=[0, 2, 1, 3])
        x = ops.reshape(x, [B_, N, C])
        x = self.proj_drop(self.proj(x))
        return x

Block

Notes: This module doesn’t have any Convolutional module.

In the level second module that we have used is block. Let’s try to understand how it works. As we can see from the call method,

Block module takes either only feature_maps for local attention or additional global query for global attention.
Before sending feature maps for attention, this module converts batch feature maps to batch windows as we’ll be applying Window Attention.
Then we send batch batch windows for attention.
After attention has been applied we revert batch windows to batch feature maps.
Before sending the attention to applied features for output, this module applies Stochastic Depth regularization in the residual connection. Also, before applying Stochastic Depth it rescales the input with trainable parameters. Note that, this Stochastic Depth block hasn’t been shown in the figure of the paper.

jpeg

Window

In the block module, we have created windows before and after applying attention. Let’s try to understand how we’re creating windows, * Following module converts feature maps (B, H, W, C) to stacked windows (B x H/h x W/w, h, w, C) → (num_windows_batch, window_size, window_size, channel) * This module uses reshape & transpose to create these windows out of image instead of iterating over them.

class Block(layers.Layer):
    """GCViT block.

    Args:
        window_size: window size.
        num_heads: number of attention head.
        global_query: apply global window attention
        mlp_ratio: MLP ratio.
        qkv_bias: bool argument for query, key, value learnable bias.
        qk_scale: bool argument to scaling query, key.
        drop: dropout rate.
        attention_dropout: attention dropout rate.
        path_drop: drop path rate.
        activation: activation function.
        layer_scale: layer scaling coefficient.
    """

    def __init__(
        self,
        window_size,
        num_heads,
        global_query,
        mlp_ratio=4.0,
        qkv_bias=True,
        qk_scale=None,
        dropout=0.0,
        attention_dropout=0.0,
        path_drop=0.0,
        activation="gelu",
        layer_scale=None,
        **kwargs,
    ):
        super().__init__(**kwargs)
        self.window_size = window_size
        self.num_heads = num_heads
        self.global_query = global_query
        self.mlp_ratio = mlp_ratio
        self.qkv_bias = qkv_bias
        self.qk_scale = qk_scale
        self.dropout = dropout
        self.attention_dropout = attention_dropout
        self.path_drop = path_drop
        self.activation = activation
        self.layer_scale = layer_scale

    def build(self, input_shape):
        B, H, W, C = input_shape[0]
        self.norm1 = layers.LayerNormalization(-1, 1e-05, name="norm1")
        self.attn = WindowAttention(
            window_size=self.window_size,
            num_heads=self.num_heads,
            global_query=self.global_query,
            qkv_bias=self.qkv_bias,
            qk_scale=self.qk_scale,
            attention_dropout=self.attention_dropout,
            projection_dropout=self.dropout,
            name="attn",
        )
        self.drop_path1 = DropPath(self.path_drop)
        self.drop_path2 = DropPath(self.path_drop)
        self.norm2 = layers.LayerNormalization(-1, 1e-05, name="norm2")
        self.mlp = MLP(
            hidden_features=int(C * self.mlp_ratio),
            dropout=self.dropout,
            activation=self.activation,
            name="mlp",
        )
        if self.layer_scale is not None:
            self.gamma1 = self.add_weight(
                name="gamma1",
                shape=[C],
                initializer=keras.initializers.Constant(self.layer_scale),
                trainable=True,
                dtype=self.dtype,
            )
            self.gamma2 = self.add_weight(
                name="gamma2",
                shape=[C],
                initializer=keras.initializers.Constant(self.layer_scale),
                trainable=True,
                dtype=self.dtype,
            )
        else:
            self.gamma1 = 1.0
            self.gamma2 = 1.0
        self.num_windows = int(H // self.window_size) * int(W // self.window_size)
        super().build(input_shape)

    def call(self, inputs, **kwargs):
        if self.global_query:
            inputs, q_global = inputs
        else:
            inputs = inputs[0]
        B, H, W, C = ops.shape(inputs)
        x = self.norm1(inputs)
        # create windows and concat them in batch axis
        x = self.window_partition(x, self.window_size)  # (B_, win_h, win_w, C)
        # flatten patch
        x = ops.reshape(x, [-1, self.window_size * self.window_size, C])
        # attention
        if self.global_query:
            x = self.attn([x, q_global])
        else:
            x = self.attn([x])
        # reverse window partition
        x = self.window_reverse(x, self.window_size, H, W, C)
        # FFN
        x = inputs + self.drop_path1(x * self.gamma1)
        x = x + self.drop_path2(self.gamma2 * self.mlp(self.norm2(x)))
        return x

    def window_partition(self, x, window_size):
        """
        Args:
            x: (B, H, W, C)
            window_size: window size
        Returns:
            local window features (num_windows*B, window_size, window_size, C)
        """
        B, H, W, C = ops.shape(x)
        x = ops.reshape(
            x,
            [
                -1,
                H // window_size,
                window_size,
                W // window_size,
                window_size,
                C,
            ],
        )
        x = ops.transpose(x, axes=[0, 1, 3, 2, 4, 5])
        windows = ops.reshape(x, [-1, window_size, window_size, C])
        return windows

    def window_reverse(self, windows, window_size, H, W, C):
        """
        Args:
            windows: local window features (num_windows*B, window_size, window_size, C)
            window_size: Window size
            H: Height of image
            W: Width of image
            C: Channel of image
        Returns:
            x: (B, H, W, C)
        """
        x = ops.reshape(
            windows,
            [
                -1,
                H // window_size,
                W // window_size,
                window_size,
                window_size,
                C,
            ],
        )
        x = ops.transpose(x, axes=[0, 1, 3, 2, 4, 5])
        x = ops.reshape(x, [-1, H, W, C])
        return x

Level

Note: This module has both Transformer and CNN modules.

In the model, the second module that we have used is level. Let’s try to understand this module. As we can see from the call method, 1. First it creates global_token with a series of FeatureExtraction modules. As we’ll see later that FeatureExtraction is nothing but a simple CNN based module. 2. Then it uses series ofBlock modules to apply local or global window attention depending on depth level. 3. Finally, it uses ReduceSize to reduce the dimension of contextualized features.

Summary: feature_map → global_token → local/global window attention → dowsample

png

class Level(layers.Layer):
    """GCViT level.

    Args:
        depth: number of layers in each stage.
        num_heads: number of heads in each stage.
        window_size: window size in each stage.
        keepdims: dims to keep in FeatureExtraction.
        downsample: bool argument for down-sampling.
        mlp_ratio: MLP ratio.
        qkv_bias: bool argument for query, key, value learnable bias.
        qk_scale: bool argument to scaling query, key.
        drop: dropout rate.
        attention_dropout: attention dropout rate.
        path_drop: drop path rate.
        layer_scale: layer scaling coefficient.
    """

    def __init__(
        self,
        depth,
        num_heads,
        window_size,
        keepdims,
        downsample=True,
        mlp_ratio=4.0,
        qkv_bias=True,
        qk_scale=None,
        dropout=0.0,
        attention_dropout=0.0,
        path_drop=0.0,
        layer_scale=None,
        **kwargs,
    ):
        super().__init__(**kwargs)
        self.depth = depth
        self.num_heads = num_heads
        self.window_size = window_size
        self.keepdims = keepdims
        self.downsample = downsample
        self.mlp_ratio = mlp_ratio
        self.qkv_bias = qkv_bias
        self.qk_scale = qk_scale
        self.dropout = dropout
        self.attention_dropout = attention_dropout
        self.path_drop = path_drop
        self.layer_scale = layer_scale

    def build(self, input_shape):
        path_drop = (
            [self.path_drop] * self.depth
            if not isinstance(self.path_drop, list)
            else self.path_drop
        )
        self.blocks = [
            Block(
                window_size=self.window_size,
                num_heads=self.num_heads,
                global_query=bool(i % 2),
                mlp_ratio=self.mlp_ratio,
                qkv_bias=self.qkv_bias,
                qk_scale=self.qk_scale,
                dropout=self.dropout,
                attention_dropout=self.attention_dropout,
                path_drop=path_drop[i],
                layer_scale=self.layer_scale,
                name=f"blocks_{i}",
            )
            for i in range(self.depth)
        ]
        self.down = ReduceSize(keepdims=False, name="downsample")
        self.q_global_gen = GlobalQueryGenerator(self.keepdims, name="q_global_gen")
        super().build(input_shape)

    def call(self, inputs, **kwargs):
        x = inputs
        q_global = self.q_global_gen(x)  # shape: (B, win_size, win_size, C)
        for i, blk in enumerate(self.blocks):
            if i % 2:
                x = blk([x, q_global])  # shape: (B, H, W, C)
            else:
                x = blk([x])  # shape: (B, H, W, C)
        if self.downsample:
            x = self.down(x)  # shape: (B, H//2, W//2, 2*C)
        return x

Model

Let’s directly jump to the model. As we can see from the call method, 1. It creates patch embeddings from an image. This layer doesn’t flattens these embeddings which means output of this module will be (batch, height/window_size, width/window_size, embed_dim) instead of (batch, height x width/window_size^2, embed_dim). 2. Then it applies Dropout module which randomly sets input units to 0. 3. It passes these embeddings to series of Level modules which we are calling level where, 1. Global token is generated 1. Both local & global attention is applied 1. Finally downsample is applied. 4. So, output after n number of levels, shape: (batch, width/window_size x 2^{n-1}, width/window_size x 2^{n-1}, embed_dim x 2^{n-1}). In the last layer, paper doesn’t use downsample and increase channels. 5. Output of above layer is normalized using LayerNormalization module. 6. In the head, 2D features are converted to 1D features with Pooling module. Output shape after this module is (batch, embed_dim x 2^{n-1}) 7. Finally, pooled features are sent to Dense/Linear module for classification.

Sumamry: image → (patchs + embedding) → dropout → (attention + feature extraction) → normalizaion → pooling → classify

class GCViT(keras.Model):
    """GCViT model.

    Args:
        window_size: window size in each stage.
        embed_dim: feature size dimension.
        depths: number of layers in each stage.
        num_heads: number of heads in each stage.
        drop_rate: dropout rate.
        mlp_ratio: MLP ratio.
        qkv_bias: bool argument for query, key, value learnable bias.
        qk_scale: bool argument to scaling query, key.
        attention_dropout: attention dropout rate.
        path_drop: drop path rate.
        layer_scale: layer scaling coefficient.
        num_classes: number of classes.
        head_activation: activation function for head.
    """

    def __init__(
        self,
        window_size,
        embed_dim,
        depths,
        num_heads,
        drop_rate=0.0,
        mlp_ratio=3.0,
        qkv_bias=True,
        qk_scale=None,
        attention_dropout=0.0,
        path_drop=0.1,
        layer_scale=None,
        num_classes=1000,
        head_activation="softmax",
        **kwargs,
    ):
        super().__init__(**kwargs)
        self.window_size = window_size
        self.embed_dim = embed_dim
        self.depths = depths
        self.num_heads = num_heads
        self.drop_rate = drop_rate
        self.mlp_ratio = mlp_ratio
        self.qkv_bias = qkv_bias
        self.qk_scale = qk_scale
        self.attention_dropout = attention_dropout
        self.path_drop = path_drop
        self.layer_scale = layer_scale
        self.num_classes = num_classes
        self.head_activation = head_activation

        self.patch_embed = PatchEmbed(embed_dim=embed_dim, name="patch_embed")
        self.pos_drop = layers.Dropout(drop_rate, name="pos_drop")
        path_drops = np.linspace(0.0, path_drop, sum(depths))
        keepdims = [(0, 0, 0), (0, 0), (1,), (1,)]
        self.levels = []
        for i in range(len(depths)):
            path_drop = path_drops[sum(depths[:i]) : sum(depths[: i + 1])].tolist()
            level = Level(
                depth=depths[i],
                num_heads=num_heads[i],
                window_size=window_size[i],
                keepdims=keepdims[i],
                downsample=(i < len(depths) - 1),
                mlp_ratio=mlp_ratio,
                qkv_bias=qkv_bias,
                qk_scale=qk_scale,
                dropout=drop_rate,
                attention_dropout=attention_dropout,
                path_drop=path_drop,
                layer_scale=layer_scale,
                name=f"levels_{i}",
            )
            self.levels.append(level)
        self.norm = layers.LayerNormalization(axis=-1, epsilon=1e-05, name="norm")
        self.pool = layers.GlobalAvgPool2D(name="pool")
        self.head = layers.Dense(num_classes, name="head", activation=head_activation)

    def build(self, input_shape):
        super().build(input_shape)
        self.built = True

    def call(self, inputs, **kwargs):
        x = self.patch_embed(inputs)  # shape: (B, H, W, C)
        x = self.pos_drop(x)
        for level in self.levels:
            x = level(x)  # shape: (B, H_, W_, C_)
        x = self.norm(x)
        x = self.pool(x)  # shape: (B, C__)
        x = self.head(x)
        return x

    def build_graph(self, input_shape=(224, 224, 3)):
        """
        ref: https://www.kaggle.com/code/ipythonx/tf-hybrid-efficientnet-swin-transformer-gradcam
        """
        x = keras.Input(shape=input_shape)
        return keras.Model(inputs=[x], outputs=self.call(x), name=self.name)

    def summary(self, input_shape=(224, 224, 3)):
        return self.build_graph(input_shape).summary()

Build Model

Let’s build a complete model with all the modules that we’ve explained above. We’ll build GCViT-XXTiny model with the configuration mentioned in the paper.
Also we’ll load the ported official pre-trained weights and try for some predictions.

# Model Configs
config = {
    "window_size": (7, 7, 14, 7),
    "embed_dim": 64,
    "depths": (2, 2, 6, 2),
    "num_heads": (2, 4, 8, 16),
    "mlp_ratio": 3.0,
    "path_drop": 0.2,
}
ckpt_link = (
    "https://github.com/awsaf49/gcvit-tf/releases/download/v1.1.6/gcvitxxtiny.keras"
)

# Build Model
model = GCViT(**config)
inp = ops.array(np.random.uniform(size=(1, 224, 224, 3)))
out = model(inp)

# Load Weights
ckpt_path = keras.utils.get_file(ckpt_link.split("/")[-1], ckpt_link)
model.load_weights(ckpt_path)

# Summary
model.summary((224, 224, 3))

결과

Downloading data from https://github.com/awsaf49/gcvit-tf/releases/download/v1.1.6/gcvitxxtiny.keras
 48767519/48767519 ━━━━━━━━━━━━━━━━━━━━ 0s 0us/step

Model: "gc_vi_t"
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━┓
┃ Layer (type)                       ┃ Output Shape                  ┃     Param # ┃
┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━┩
│ input_layer (InputLayer)           │ (None, 224, 224, 3)           │           0 │
├────────────────────────────────────┼───────────────────────────────┼─────────────┤
│ patch_embed (PatchEmbed)           │ (None, 56, 56, 64)            │      45,632 │
├────────────────────────────────────┼───────────────────────────────┼─────────────┤
│ pos_drop (Dropout)                 │ (None, 56, 56, 64)            │           0 │
├────────────────────────────────────┼───────────────────────────────┼─────────────┤
│ levels_0 (Level)                   │ (None, 28, 28, 128)           │     180,964 │
├────────────────────────────────────┼───────────────────────────────┼─────────────┤
│ levels_1 (Level)                   │ (None, 14, 14, 256)           │     688,456 │
├────────────────────────────────────┼───────────────────────────────┼─────────────┤
│ levels_2 (Level)                   │ (None, 7, 7, 512)             │   5,170,608 │
├────────────────────────────────────┼───────────────────────────────┼─────────────┤
│ levels_3 (Level)                   │ (None, 7, 7, 512)             │   5,395,744 │
├────────────────────────────────────┼───────────────────────────────┼─────────────┤
│ norm (LayerNormalization)          │ (None, 7, 7, 512)             │       1,024 │
├────────────────────────────────────┼───────────────────────────────┼─────────────┤
│ pool (GlobalAveragePooling2D)      │ (None, 512)                   │           0 │
├────────────────────────────────────┼───────────────────────────────┼─────────────┤
│ head (Dense)                       │ (None, 1000)                  │     513,000 │
└────────────────────────────────────┴───────────────────────────────┴─────────────┘
 Total params: 11,995,428 (45.76 MB)
 Trainable params: 11,995,428 (45.76 MB)
 Non-trainable params: 0 (0.00 B)

Sanity check for Pre-Trained Weights

img = keras.applications.imagenet_utils.preprocess_input(
    chelsea(), mode="torch"
)  # Chelsea the cat
img = ops.image.resize(img, (224, 224))[None,]  # resize & create batch
pred = model(img)
pred_dec = keras.applications.imagenet_utils.decode_predictions(pred)[0]

print("\n# Image:")
plt.figure(figsize=(6, 6))
plt.imshow(chelsea())
plt.show()
print()

print("# Prediction (Top 5):")
for i in range(5):
    print("{:<12} : {:0.2f}".format(pred_dec[i][1], pred_dec[i][2]))

결과

Downloading data from https://storage.googleapis.com/download.tensorflow.org/data/imagenet_class_index.json
 35363/35363 ━━━━━━━━━━━━━━━━━━━━ 0s 0us/step

# Image:

png

# Prediction (Top 5):
Egyptian_cat : 0.72
tiger_cat    : 0.04
tabby        : 0.03
crossword_puzzle : 0.01
panpipe      : 0.00

Fine-tune GCViT Model

In the following cells, we will fine-tune GCViT model on Flower Dataset which consists 104 classes.

Configs

# Model
IMAGE_SIZE = (224, 224)

# Hyper Params
BATCH_SIZE = 32
EPOCHS = 5

# Dataset
CLASSES = [
    "dandelion",
    "daisy",
    "tulips",
    "sunflowers",
    "roses",
]  # don't change the order

# Other constants
MEAN = 255 * np.array([0.485, 0.456, 0.406], dtype="float32")  # imagenet mean
STD = 255 * np.array([0.229, 0.224, 0.225], dtype="float32")  # imagenet std
AUTO = tf.data.AUTOTUNE

Data Loader

def make_dataset(dataset: tf.data.Dataset, train: bool, image_size: int = IMAGE_SIZE):
    def preprocess(image, label):
        # for training, do augmentation
        if train:
            if tf.random.uniform(shape=[]) > 0.5:
                image = tf.image.flip_left_right(image)
        image = tf.image.resize(image, size=image_size, method="bicubic")
        image = (image - MEAN) / STD  # normalization
        return image, label

    if train:
        dataset = dataset.shuffle(BATCH_SIZE * 10)

    return dataset.map(preprocess, AUTO).batch(BATCH_SIZE).prefetch(AUTO)

Flower Dataset

train_dataset, val_dataset = tfds.load(
    "tf_flowers",
    split=["train[:90%]", "train[90%:]"],
    as_supervised=True,
    try_gcs=False,  # gcs_path is necessary for tpu,
)

train_dataset = make_dataset(train_dataset, True)
val_dataset = make_dataset(val_dataset, False)

결과

Downloading and preparing dataset 218.21 MiB (download: 218.21 MiB, generated: 221.83 MiB, total: 440.05 MiB) to /root/tensorflow_datasets/tf_flowers/3.0.1...

Dl Completed...:   0%|          | 0/5 [00:00<?, ? file/s]

Dataset tf_flowers downloaded and prepared to /root/tensorflow_datasets/tf_flowers/3.0.1. Subsequent calls will reuse this data.

Re-Build Model for Flower Dataset

# Re-Build Model
model = GCViT(**config, num_classes=104)
inp = ops.array(np.random.uniform(size=(1, 224, 224, 3)))
out = model(inp)

# Load Weights
ckpt_path = keras.utils.get_file(ckpt_link.split("/")[-1], ckpt_link)
model.load_weights(ckpt_path, skip_mismatch=True)

model.compile(
    loss="sparse_categorical_crossentropy", optimizer="adam", metrics=["accuracy"]
)

결과

/usr/local/lib/python3.10/dist-packages/keras/src/saving/saving_lib.py:269: UserWarning: A total of 1 objects could not be loaded. Example error message for object <Dense name=head, built=True>:

Layer 'head' expected 2 variables, but received 0 variables during loading. Expected: ['kernel', 'bias']

List of objects that could not be loaded:
[<Dense name=head, built=True>]
  warnings.warn(msg)

Training

history = model.fit(
    train_dataset, validation_data=val_dataset, epochs=EPOCHS, verbose=1
)

결과

Epoch 1/5
 104/104 ━━━━━━━━━━━━━━━━━━━━ 153s 581ms/step - accuracy: 0.5140 - loss: 1.4615 - val_accuracy: 0.8828 - val_loss: 0.3485
Epoch 2/5
 104/104 ━━━━━━━━━━━━━━━━━━━━ 7s 69ms/step - accuracy: 0.8775 - loss: 0.3437 - val_accuracy: 0.8828 - val_loss: 0.3508
Epoch 3/5
 104/104 ━━━━━━━━━━━━━━━━━━━━ 7s 68ms/step - accuracy: 0.8937 - loss: 0.2918 - val_accuracy: 0.9019 - val_loss: 0.2953
Epoch 4/5
 104/104 ━━━━━━━━━━━━━━━━━━━━ 7s 68ms/step - accuracy: 0.9232 - loss: 0.2397 - val_accuracy: 0.9183 - val_loss: 0.2212
Epoch 5/5
 104/104 ━━━━━━━━━━━━━━━━━━━━ 7s 68ms/step - accuracy: 0.9456 - loss: 0.1645 - val_accuracy: 0.9210 - val_loss: 0.2897
